Elnet MC

Elnet MC

1.923,90 €

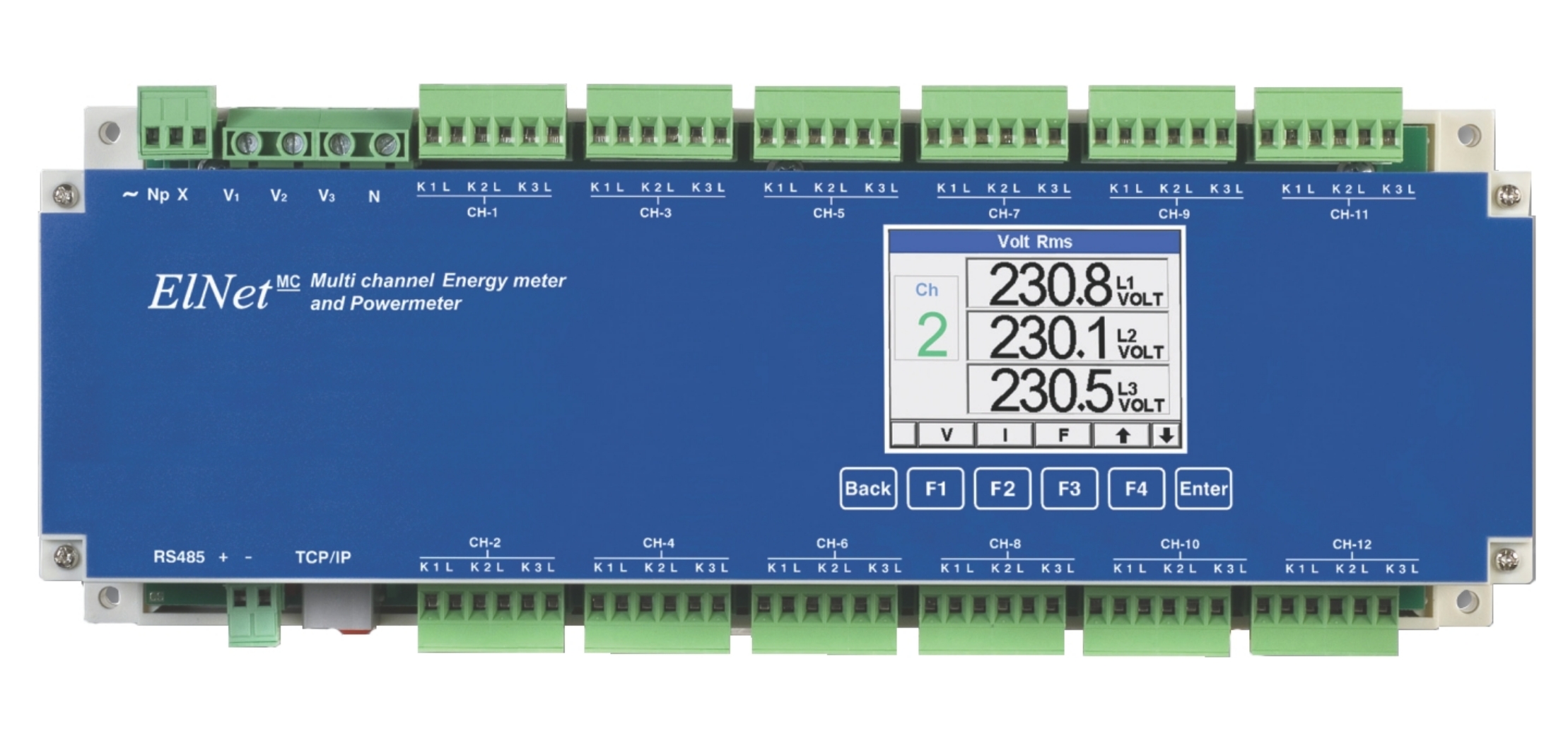

Multi channel (12 three phase) power and  energy meter, LCD display, Rs485 and TCP/IP communication (ModBus and Bacnet) + WEB Server, DIN rail mounted.

Product Description

General

  • Multi channels Energy meter.
  • Up to 12 sets of three phase energy meters.
  • Up to 36 single phase energy meters.
  • Up to 36 Digital Inputs (alternate option)
  • Up to 4 months of energy data logging.
  • Electrical variables display.
  • 1600 samples per cycle.
  • Build in Powermeter.
  • Simple operated menus.
  • Accuracy 0.2-0.1 % with special calibration.
  • Up to 4 months history of energy data logging.
  • Ethernet (TCP/IP) and RS-485 ports.
  • MODBUS (RTU, TCP/IP)
  • BacNet (MS/TP, TCP/IP)
  • WEB browser capability.
  • Advanced LCD Backlight display.
  • Simple installation – DIN Rail monunterd.
  • Standard Approvals:
  • ICE 62053-22
  • IEC 62053-23
  • IEC 62052-11





Additional Information

Weight 1.4 kg
Dimensions 32.7 x 12.2 x 8 cm

Live View

To get an impression how does the WEB server of the device work, please try it out. The meter is installed in our headquarter offices. The refreshing rate depends on the speed of the network connection. Two simultaneous connections are supported.

Technical documentation

Download the technical documentation

  • User Manual
Elnet MC - User Manual
Elnet MC - User Manual
Elnet MC - User Manual.pdf
5.1 MiB
2094 Downloads
Details
  • Manual how to communicate with the Elnet MC
Elnet Comm
Elnet Comm
elnet_comm.pdf
3.1 MiB
4626 Downloads
Details
  • Declaration of conformity
CE  GR  LT MC
CE GR LT MC
CE_ GR_ LT_MC.pdf
80.9 KiB
828 Downloads
Details

Discounts

Buy more and get special discounts:

2-5 – 5%
6-10 – 10%
11-20 – 20%
21-30 – 30%
more than 40 – 40%
