Elnet LTC 16 TCP

460,90 €

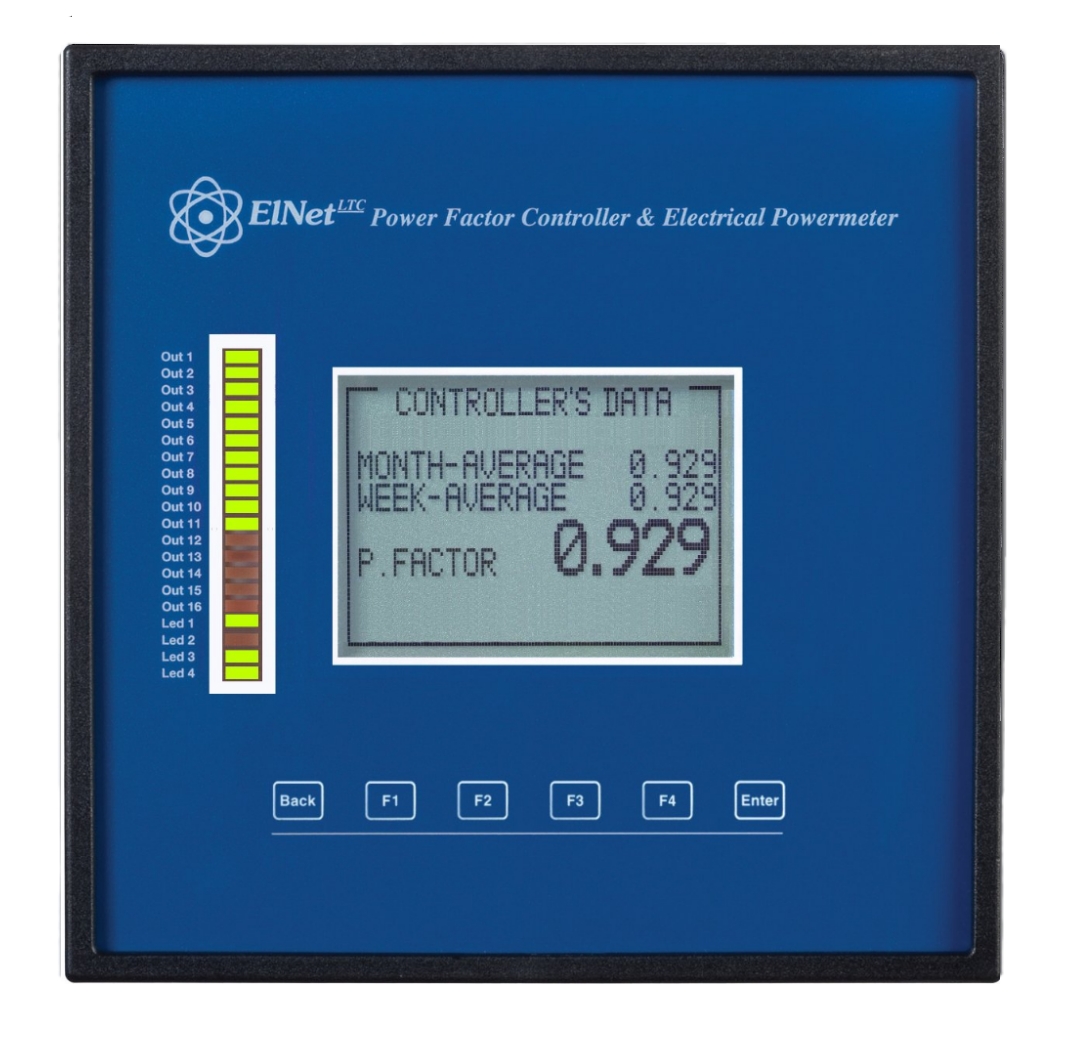

Power Factor Controller with THD, current and voltage protections with build in 16 stages, Powermeter with graphic display for all electrical measurements and harmonics, RS485 communication (Modbus). Panel mounted 144X144 mm.

Out of stock

SKU: Elnet LTC16 Categories: , , Tags: , , , , ,

Product Description

General

  • Up to 16 switching stages relays.

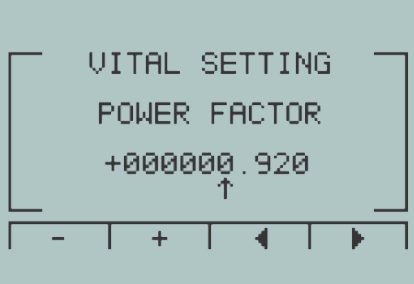

  • Real time Power factor display.

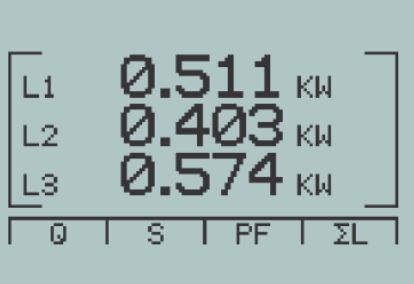

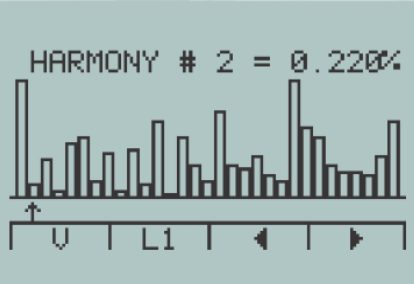

  • Voltage, Current, Power Factor & Harmonics measurenets.

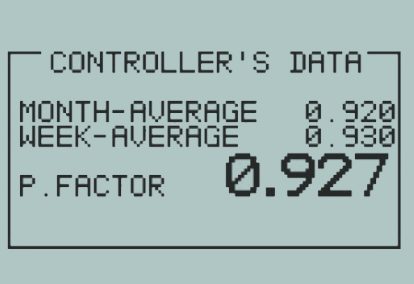

  • Weekly & monthly Power Factor display.
  • Auto detection of capators size.

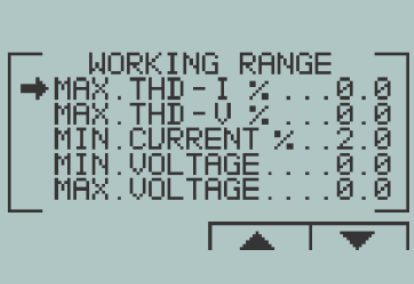

  • Voltage & Current limis settings.
  • Auto detection of capacity size.
  • Harmonic’s protection.
  • Voltage & Current limits setting.
  • Accuracy 0.2 %
  • Accuracy 0.1 % with special calibration can be ordered.
  • 1.600 samples per cycle.
  • Up to 6 months of energy data logging.
  • Hight resolution display (128×64).

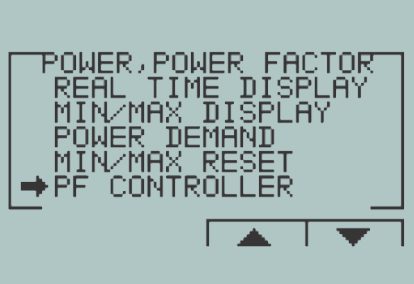

  • Multilingual simple oprated menus.
  • RS- 485 Communication Port.
  • Ethernet (TCP/IP) communication port (optional).
  • Dimensions: 144x 144 x 100 mm.

Additional Information

Weight 1 kg
Dimensions 15.2 x 15.6 x 13.1 cm

Technical documentation

Technical documentation

Download the technical documentation

  • User Manual
Elnet LTC - User Manual
Elnet LTC - User Manual
Elnet LTC - User Manual.pdf
369.7 KiB
1677 Downloads
Details
  • Manual how to communicate with the Elnet LTC16
Elnet Comm
Elnet Comm
elnet_comm.pdf
3.1 MiB
4680 Downloads
Details
  • Declaration of conformity
CE Declaration Of Conformity LTC
CE Declaration Of Conformity LTC
CE_Declaration_of_Conformity_LTC.pdf
452.7 KiB
676 Downloads
Details

Discounts

Buy more and get special discounts:

2-5 – 5%
6-10 – 10%
11-20 – 20%
21-30 – 30%
more than 40 – 40%
