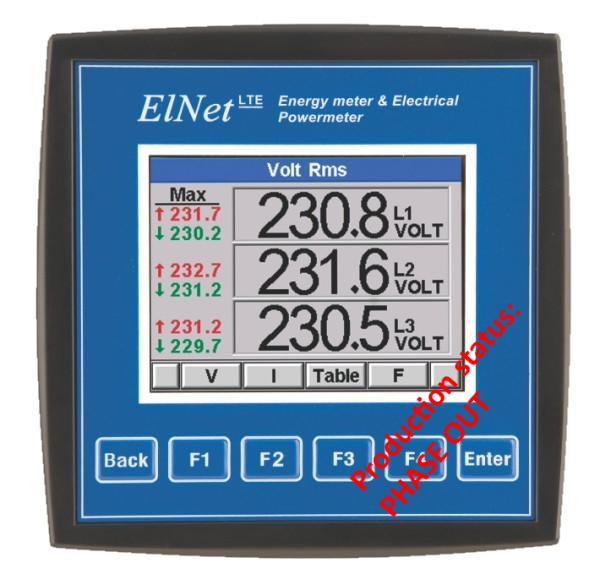

Elnet LTE

 Main features:

• Multi Measurements: LTE is three phase Multimeter with capability of measuring Voltage, Current, Frequency, Power and Power Factor with high accuracy and reliability.
• Peak recording: LTE Multimeter has the capability to record and display the minimum and the maximum values of Voltage, Current, Frequency and Power Factor.
• User friendly: LTE Multimeter has 3 navigation push buttons that enable the user easily to display all the information recorded and measured by the LTE Multimeter.
• Easy Installation: LTE Multimeter has standard size (96×96 mm) and flexible housing that enable the user to install it easily in the front of the electrical panel or to replace existing Ampermeter (96×96 mm)
• Cost reduction: LTE Multimeter offered for very attractive price and designed to replace 6 analog meters (Voltage & Current) and consequently minimize the size of the electrical board thus reducing installation expenses.
• High visibility Back Light LCD.

Standard approvals:

International standard (CE): EMC:
Voltage Fluctuations : EN 61000-3-3:1995; A1:2000.
Emissions for ITE : EN 55022:1998; A1:2000.
Immunity for ITE : EN 55024:1994; A1+A2 2001.
Harmonic Emissions : EN 61000-3-2:2001.

SAFETY:
Measurement, Process control and Lab Equipment : EN 61010-1.
Safety for Household & similar electrical appliance : EN 60335-1.

Technical specifications:
Voltage : 230 VAC ± 10%
Power Requirement : 60/50 Hz, 20VA
Dimension (H x W x D) : 96 x 96 x 80 mm
Shipping Weight : 450 gr
Working Conditions :-20 – 70ºC
Display : Back Light LCD
Voltage input : maximum 1000V
Current input : maximum 5A
Measurement ranges (with transformer)
Voltage : up to 999 KV
Current : up to 999 KA
