Product Description
Product Description
General

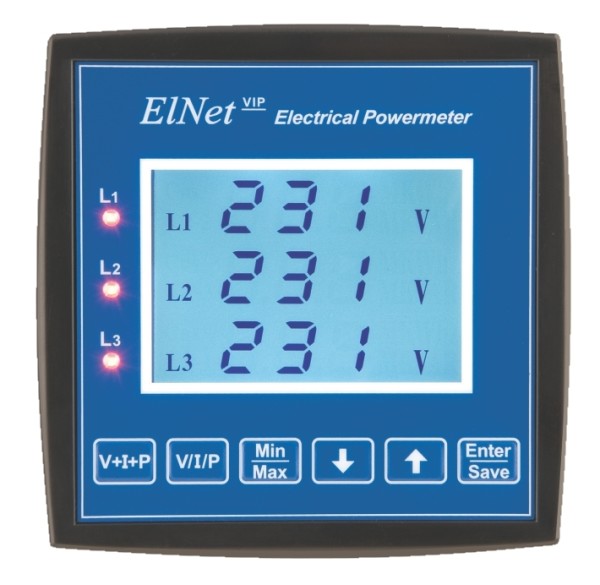

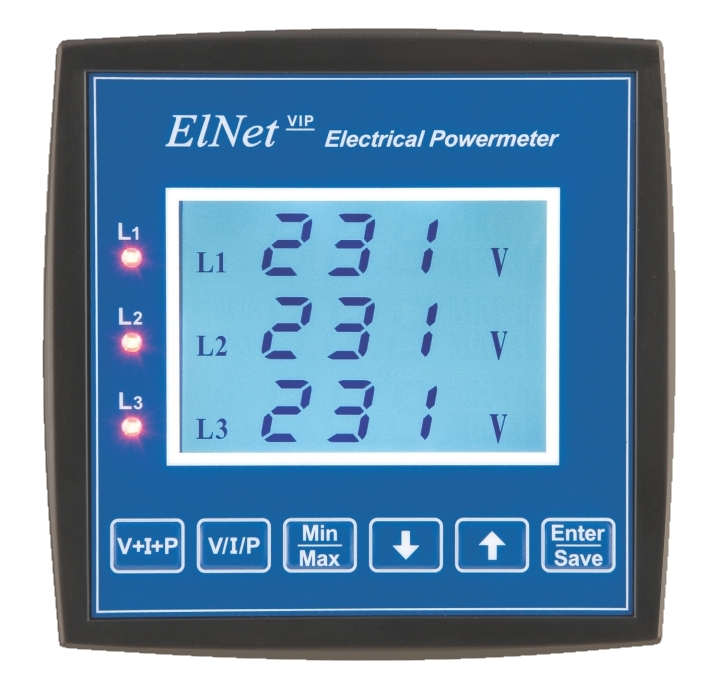

- Three phase Multimeter

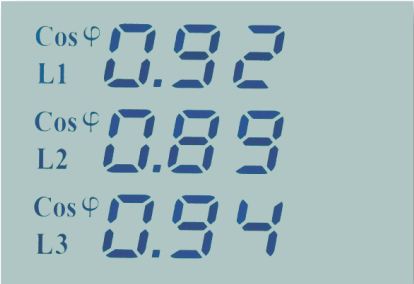

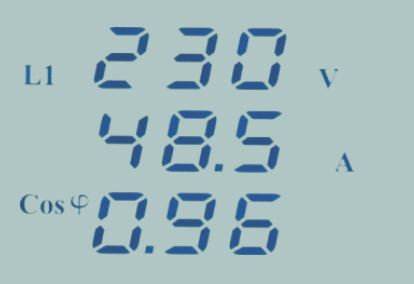

- Voltage, Current, Frequency, power & power factor Measurements.

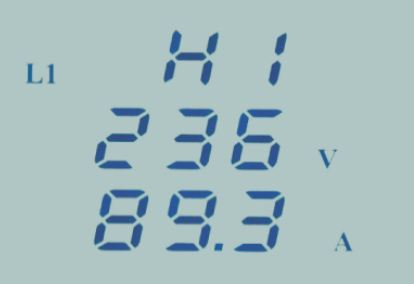

- Peak value display of all Measurements.
- Power demand for current and real power.
- Phase absence & disorder relay.
- Accuracy 0.5% in nominal range.
- LCD back light display.
- Simple installation – panel mounted.
- 96x96mm
Standard approvals:
International standard (CE): EMC:
Voltage Fluctuations : EN 61000-3-3:1995; A1:2000.
Emissions for ITE : EN 55022:1998; A1:2000.
Immunity for ITE : EN 55024:1994; A1+A2 2001.
Harmonic Emissions : EN 61000-3-2:2001.
Voltage Fluctuations : EN 61000-3-3:1995; A1:2000.
Emissions for ITE : EN 55022:1998; A1:2000.
Immunity for ITE : EN 55024:1994; A1+A2 2001.
Harmonic Emissions : EN 61000-3-2:2001.
SAFETY:
Measurement, Process control and Lab Equipment : EN 61010-1.
Safety for Household & similar electrical appliance : EN 60335-1.
Measurement, Process control and Lab Equipment : EN 61010-1.
Safety for Household & similar electrical appliance : EN 60335-1.
Technical specifications:
Voltage : 230 VAC ± 10%
Power Requirement : 60/50 Hz, 20VA
Dimension (H x W x D) : 96 x 96 x 80 mm
Shipping Weight : 450 gr
Working Conditions :-20 – 70ºC
Display : Back Light LCD
Voltage input : maximum 1000V
Current input : maximum 5A
Measurement ranges (with transformer)
Voltage : up to 999 KV
Current : up to 999 KA
Voltage : 230 VAC ± 10%
Power Requirement : 60/50 Hz, 20VA
Dimension (H x W x D) : 96 x 96 x 80 mm
Shipping Weight : 450 gr
Working Conditions :-20 – 70ºC
Display : Back Light LCD
Voltage input : maximum 1000V
Current input : maximum 5A
Measurement ranges (with transformer)
Voltage : up to 999 KV
Current : up to 999 KA
